Standard Shadow™ patent-pending, stainless steel, folding T-Top kit:

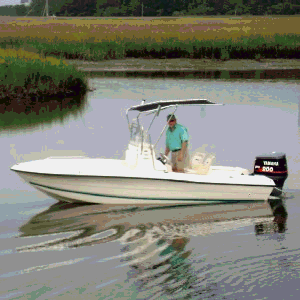

ShadowTop, Animation, 300x300.
(click image to enlarge)
| Click to see: |
- Notes: Shadow™ folding T-Top Kit includes:
- Pair of 1" inch diameter stainless steel Port and Starboard Frames with Rear Legs attached,
- (4)each 7/8" or 1" inch inside diameter Stainless Steel Mounting Clamps (Pivots) with Quick-Release-Pins on Lanyards for Rear Legs,
- Sunbrella® fabric top with Lacing Cord (Black Sunbrella is standard and is kept in stock),
- Shadow® Installation Guide.
- Fits 7/8" or 1" inch Outside-Diameter (OD) Stainless Steel Windshield Grab Rails,
- Fits grab rail widths from 27" to 37" inches,
- Overall height will be approximately 21" inches above your boats windshield grab rails. 1" to 2" more inches can be gained by simply mounting the rear legs so the rear of the Shadow™ Top is raised a bit.
- Click for Diagram and Form to Measure your Windshield Grab Rails,
- NOT approved for to be mounted on Aluminum grab rails,
- Does NOT fit 3/4", 1.060", 1.080", 1.125", 1.90" or 2" inch OD rails,
- Does NOT fit Boston Whaler® Montauk™ or Outrage™ boats, see Montauk-Shadow™ instead.
- Tall Shadow™ (5.75 inches taller),
- Sunbrella® Color Upgrade (Black Sunbrella® is standard),
- optional Stabilizer bar for rough seas,
- optional Gear-Loft stores 3 or 4 PFDs above your head,
- Stainless Steel Rod Holders mount on frame,
- Replacement Shadow™ Canvas, Black,
- Replacement T-Topless™ Canvas,
- Replacement T-Topless™ Grab-Rail Clamps,
- Replacement Shadow™ Canvas, Other Color,
- Exact-Fit™ Trailerable Boat Cover fits over Shadow™ when folded down.
- Warranty: RNR-Marine has an industry leading 10-year Frame Warranty on T-Topless, Montauk-T-Topless, Shadow, Montauk-Shadow and Flats-Top products). Sunbrella fabric is covered by the Glenn Raven 10-year pro-rated warranty. (All product warranties are listed on http://www.rnr-marine.com/Warranty.shtml).
- Installation: Shadow(tm) Installation Steps. A full, printed Installation Guide will be shipped with your top.
- Maintenance and Care: Routine Maintenance and Cleaning
- More Info: Shadow.shtml
- Manufacturer's Suggested Retail Price (MSRP): $972.56
