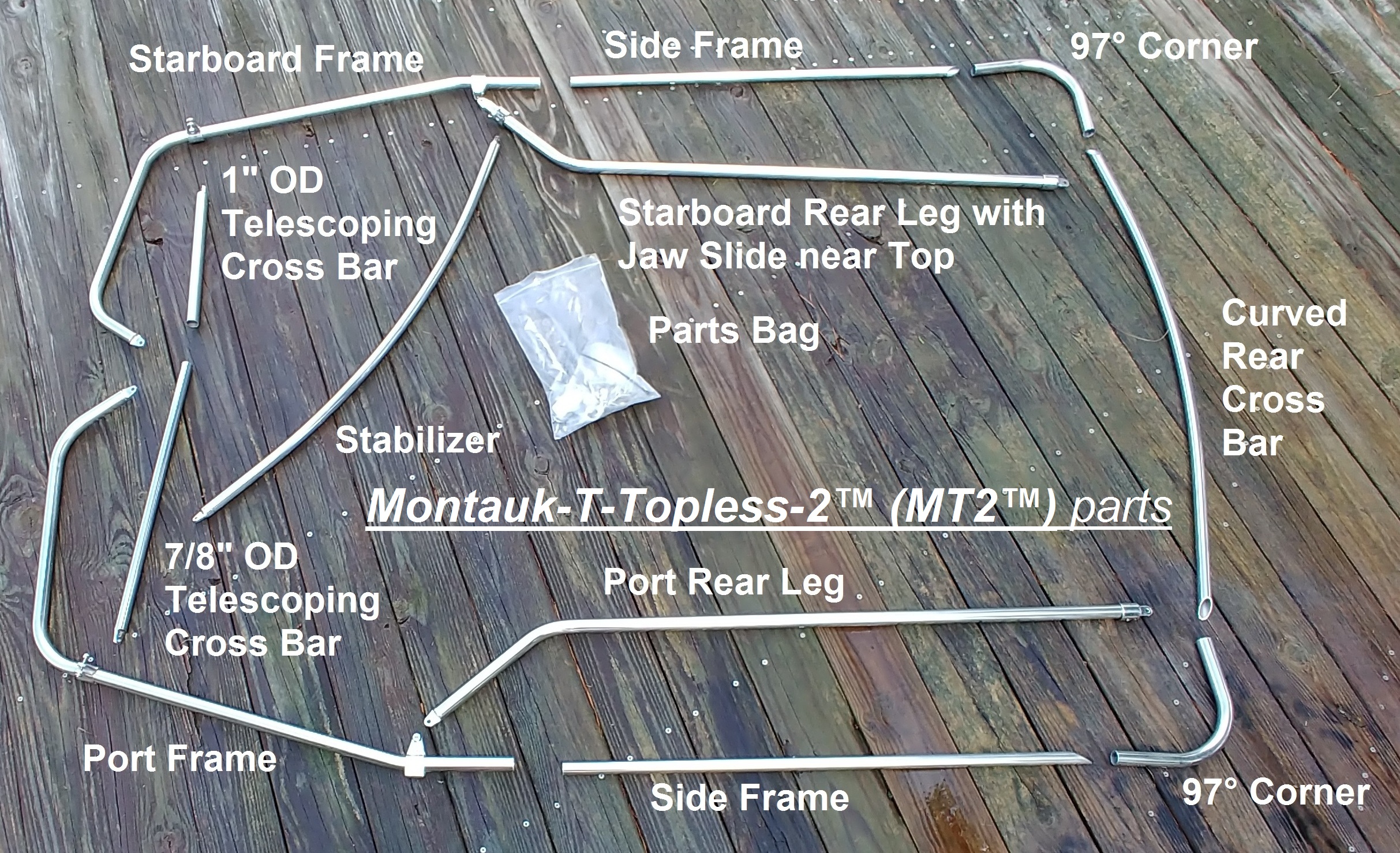

Pair of Frames (Port and Starboard Front Frames, Side Frames and Rear Corners),
Pair of Rear-Legs (with quick release pins on lanyards),
Curved Rear-Cross-Bar,
Telescoping Front-Cross-Bar with Spacers,
Stabilizer-Bar with adjustable rail clamp and quick release pin on lanyard,
(5)each 7/8 or 1.00 OD Mounting Clamps (Montauks and Outrages are 7/8),
Sunbrella® Canvas and Lacing Cord.
Size/Fit:
Fits Montauk™ 17/170, Outrage™ 18 and other Whalers with factory console and factory stainless steel grab rails (as well as other boats):
1973-2001 Montauk 17/170: 6ft,1in to 6ft,5in height,
2002-2007 Montauk 170: 5ft,11in to 6ft,3in (lower console),
2008-current Montauk 170: 6ft,3in to 6ft,7in,
1981-2000 Outrage18: 6ft,1in to 6ft,5in,
most other Outrages, Montauk 150s and Dauntless 15-200,
Montauk 190: grab rails are too wide to fit,
Montauk 210: please meausre,
other (non Whaler) boats with 31-35 inches wide, raked forward (+5° to +45°) Stainless Steel Windshield Grab Rails (NO Aluminum rails). Please click for Diagram to Measure your Windshield Grab Rails.
Clears standard Igloo® 86 quart (pre-1990) or 94 quart (1990+) cooler used on Montauks,
Allows use of factory rod holders on front of Console and on factory Reversible Pilot Seat,
Overall height is 27 to 29 inches above windshield grab rails (1-2 inches can be gained by mounting rear legs higher),
Does NOT fit 3/4 , 1.060 or larger dia. rails,
Fits under standard Boat Covers,
Use our Spray Shield instead of a Console Cover,
Ships (insured) in a 49x18x5 x 37lb box (signature required).
Options:
Gear-Loft stores 4-5 PFDs above your head (Black Phifertex® keeps gear dry), frees cooler for drinks,
Installation: Installs in 2 hours with a large Phillips Screwdriver, 7/16" Box End Wrench and 3/16" Allen Wrench per the Montauk-T-Topless-2™ Installation Guide. Rear Legs mount to the back of the Windshield Grab Rails or the Reversible Pilot Seat. Finally, Lace the Canvas onto the Frame .
